High Voltage and Switchboard Floor Mats

The safety of personel working near high voltage is paramount. If you have a workforce that works in proximity to high voltage areas or equipment, non-conductive and switchboard mats are critical to their health and safety.

Switchboard matting and switchboard flooring options from MATSonline are designed to protect employees from potentially deadly high voltage scenarios. Wearwell’s high voltage switchboard mats provide an easy solution that can insulate against as much as 30,000 volts of electricity. With smooth, corrugated, tile-top, and diamond-plate switchboard mat options, you can find insulative mats and high voltage mats for virtually any area or industry.

Most switchboard matting is available in one foot cut lengths up to 75 feet plus, 75 foot matting rolls are available and in stock. A complete line of ESD, electrically conductive floor matting is also available from MATSonline.

7 Items

List
Sort By:
  • Sku ML702BYL
    Starting At $106.65 Regular Price $164.08
    View Info
    • Corrugated Switchboard Matting, 30,000 Volts, Ribbed, 1/4in Thick, Black with Yellow Borders
  • Sku ML702BK
    • Conforms to ANSI/ASTM D-178-01 Type II, Class 2
    • Dielectric Strength: 30,000 volts
    • Available in 1/4” and 3/8" thickness
    • Easy to clean Corrugated surface design adds traction and safety
    • 1/4” thickness conforms to ANSI/ASTM D178-01, Type II, Class 2: 30,000 volts. (Recommended Max Usage up to 17,000 volts)
    • 3/8” thickness conforms to ANSI/ASTM D178-01, Type II, Class 3: 40,000 volts. (Recommended Max Usage up to 26,500 volts)
    • Cut to length - 1’ incremental cut lengths are available for 1/4" thickness
    • Only full rolls, 75ft, available for 3/8" thickness
    Starting At $81.91 Regular Price $126.01
    View Info
    • Corrugated Switchboard Matting, 30,000 Volts, 1/4in Thick - Black
  • Sku ML701BYL
    • Conforms to ANSI/ASTM D-178-01 Type II, Class 2 standards
    • Dielectric Strength: 30,000 volts
    • Recommended Max Usage per ASTM D178-01: up to 17,000 volts
    • Easy to clean Diamond-plate traction surface design adds safety and industrial style
    Starting At $106.65 Regular Price $164.08
    View Info
    • Diamond-Plate Switchboard, Non-Conductive Matting, 1/4in Thick, Black w/ Yellow Borders
  • Sku ML701BK
    • Conforms to ANSI/ASTM D-178-01 Type II, Class 2 standards
    • Dielectric Strength: 30,000 volts
    • Recommended Max Usage per ASTM D178-01: up to 17,000 volts
    • Easy to clean Diamond-Plate traction surface design adds safety
    • Frequently used in mining, utility and other heavy-industry facilities
    • Made in USA
    Starting At $81.91 Regular Price $126.01
    View Info
    • Switchboard Non-conductive Matting - Diamond-plate Traction Surface - 1/4in Thick Black
  • Sku ML720BYL
    • Conforms to ANSI/ASTM D178 01, Type II, Class 2
    • Insulates up to 40,000 volts of electricity
    • "Best" Nitricell sponge base delivers 2X the resilience and 3X the life of typical sponges
    • Meant for use in a dry, indoor area
    • 5/8" thick, 3' wide
    • Lay-flat design and up to 20% more standing area than off-brand products
    • Made in USA
    Starting At $242.29 Regular Price $302.86
    View Info
    • Double Duty Corrugated Switchboard Anti-fatigue Mat - Black with Yellow Borders
    • Double Duty Corrugated Switchboard Anti-fatigue Mat - Black with Yellow Borders
  • Sku ML720BK
    • Conforms to ANSI/ASTM D178 01, Type II, Class 2
    • Insulates up to 40,000 volts of electricity
    • "Best" Nitricell sponge base delivers 2X the resilience and 3X the life of typical sponges
    • 5/8" thick, 3' wide
    • Meant for use in dry, indoor areas
    • Lay-flat design and up to 20% more standing area compared to off brand products
    • Made in USA
    Starting At $196.00 Regular Price $245.00
    View Info
    • Double Duty Anti-Fatigue Switchboard Corrugated Non-conductive Floor Matting - Black
    • Double Duty Anti-Fatigue Switchboard Corrugated Non-conductive Floor Matting - Black
  • Sku ML711
    • Easy to clean Smooth (Type II) surface
    • Exceptional ozone and oil resistance.
    • Surface conforms to MIL-DTL-15562G, Type II, 30,000 volts
    • Recommended Max Usage up to 3000 volts
    • Overall thickness 1/8”
    • One foot cut lengths to 75ft long
    Starting At $84.87 Regular Price $130.57
    View Info

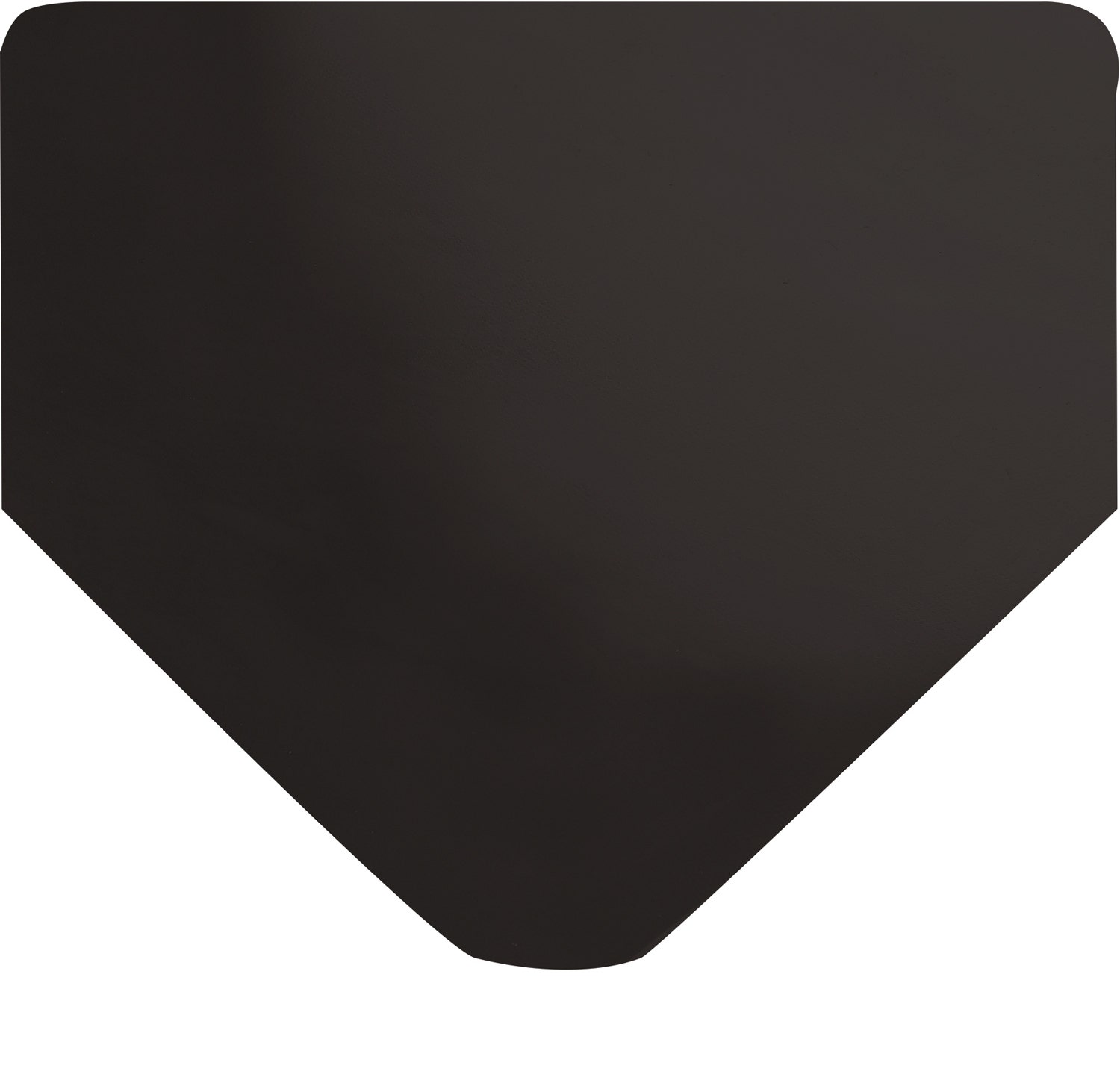

    • Smooth Military Switchboard Matting, Black, 1/8in Thick
