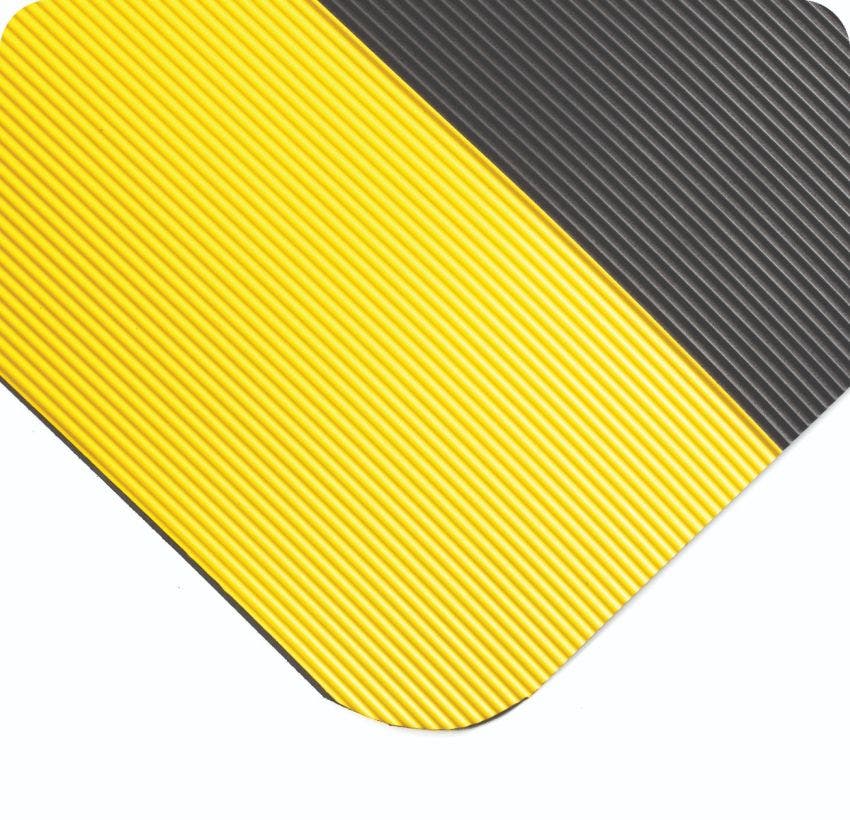

Corrugated Switchboard Matting, 30,000 Volts, Ribbed, 1/4in Thick, Black with Yellow Borders
Classic, durable and time tested design. Corrugated Non-conductive Switchboard Floor Matting is designed to protect personnel in areas with dangerous high-voltage equipment. It's an essential safety component for a wide range of industries and anywhere workers are in proximity to high voltage or in danger of lethal shock. Made from non-conductive vinyl with a dielectric strength 30,000 volts. Black with yellow borders switchboard matting is available 3 foot widths and custom lengths up to 75ft. (other widths and 3/8ths thickness only available in black)
Learn more about the complete line of switchboard matting.
- Available in 1/4” thickness in cut lengths to 75ft long
- 1/4” thickness conforms to ANSI/ASTM D178-01, Type II, Class 2: 30,000 volts. (Recommended Max Usage up to 17,000 volts)
- Available in black only: 3/8” thickness conforms to ANSI/ASTM D178-01, Type II, Class 3: 40,000 volts. (Recommended Max Usage up to 26,500 volts)
- Easy to clean corrugated or "ribbed" surface design adds traction and safety
- USA Made
Have a question? We're here to help!
Call 1-888-413-7317The Need for Non-conductive Matting is Critical If…
Team members are exposed to high-voltage electricity in the workplace
The work area has high-voltage warning signs to indicate electrical danger
Workplace safety and ensuring the safety of personnel is a concern.
Designed to protect personnel in areas with dangerous high-voltage equipment. Surface is easily cleaned and will not collect contaminants. Conforms to ANSI/ASTM D-178-01 Type II (a premium quality vinyl compound resistant to UV, ozone and many common chemicals).
| Size | Color | Sku | UPC | Regular Price | Sell Price |
|---|---|---|---|---|---|
| 3' x 10' | Black/Yellow | ML702.14x3x10BYL | 715411926312 | $328.19 | $213.32 |
| 3' x 11' | Black/Yellow | ML702.14x3x11BYL | 715411926329 | $360.98 | $234.64 |
| 3' x 12' | Black/Yellow | ML702.14x3x12BYL | 715411926336 | $393.78 | $255.96 |
| 3' x 13' | Black/Yellow | ML702.14x3x13BYL | 715411926343 | $426.61 | $277.30 |
| 3' x 14' | Black/Yellow | ML702.14x3x14BYL | 715411926350 | $459.42 | $298.62 |
| 3' x 15' | Black/Yellow | ML702.14x3x15BYL | 715411926367 | $492.26 | $319.97 |
| 3' x 16' | Black/Yellow | ML702.14x3x16BYL | 715411926374 | $525.05 | $341.28 |
| 3' x 17' | Black/Yellow | ML702.14x3x17BYL | 715411926381 | $557.87 | $362.62 |
| 3' x 18' | Black/Yellow | ML702.14x3x18BYL | 715411926398 | $590.69 | $383.95 |
| 3' x 19' | Black/Yellow | ML702.14x3x19BYL | 715411926404 | $623.49 | $405.27 |
| 3' x 20' | Black/Yellow | ML702.14x3x20BYL | 715411926411 | $656.32 | $426.61 |
| 3' x 21' | Black/Yellow | ML702.14x3x21BYL | 715411926428 | $689.12 | $447.93 |
| 3' x 22' | Black/Yellow | ML702.14x3x22BYL | 715411926435 | $721.96 | $469.27 |
| 3' x 23' | Black/Yellow | ML702.14x3x23BYL | 715411926442 | $754.77 | $490.60 |
| 3' x 24' | Black/Yellow | ML702.14x3x24BYL | 715411926459 | $787.57 | $511.92 |
| 3' x 25' | Black/Yellow | ML702.14x3x25BYL | 715411926466 | $820.39 | $533.25 |
| 3' x 26' | Black/Yellow | ML702.14x3x26BYL | 715411926473 | $853.20 | $554.58 |
| 3' x 27' | Black/Yellow | ML702.14x3x27BYL | 715411926480 | $886.04 | $575.93 |
| 3' x 28' | Black/Yellow | ML702.14x3x28BYL | 715411926497 | $919.77 | $597.85 |
| 3' x 29' | Black/Yellow | ML702.14x3x29BYL | 715411926503 | $951.67 | $618.59 |
| 3' x 30' | Black/Yellow | ML702.14x3x30BYL | 715411926510 | $984.47 | $639.91 |
| 3' x 31' | Black/Yellow | ML702.14x3x31BYL | 715411926527 | $1,017.28 | $661.23 |
| 3' x 32' | Black/Yellow | ML702.14x3x32BYL | 715411926534 | $1,050.10 | $682.57 |
| 3' x 33' | Black/Yellow | ML702.14x3x33BYL | 715411926541 | $1,082.91 | $703.89 |
| 3' x 34' | Black/Yellow | ML702.14x3x34BYL | 715411926558 | $1,115.74 | $725.23 |
| 3' x 35' | Black/Yellow | ML702.14x3x35BYL | 715411926565 | $1,148.55 | $746.56 |
| 3' x 36' | Black/Yellow | ML702.14x3x36BYL | 715411926572 | $1,181.36 | $767.88 |
| 3' x 37' | Black/Yellow | ML702.14x3x37BYL | 715411926589 | $1,214.17 | $789.21 |
| 3' x 38' | Black/Yellow | ML702.14x3x38BYL | 715411926596 | $1,246.98 | $810.54 |
| 3' x 39' | Black/Yellow | ML702.14x3x39BYL | 715411926602 | $1,279.81 | $831.88 |
| 3' x 3' | Black/Yellow | ML702.14x3x3BYL | 715411926244 | $164.08 | $106.65 |
| 3' x 40' | Black/Yellow | ML702.14x3x40BYL | 715411926619 | $1,312.63 | $853.21 |
| 3' x 41' | Black/Yellow | ML702.14x3x41BYL | 715411926626 | $1,345.44 | $874.54 |
| 3' x 42' | Black/Yellow | ML702.14x3x42BYL | 715411926633 | $1,378.26 | $895.87 |
| 3' x 43' | Black/Yellow | ML702.14x3x43BYL | 715411926640 | $1,411.06 | $917.19 |
| 3' x 44' | Black/Yellow | ML702.14x3x44BYL | 715411926657 | $1,443.89 | $938.53 |
| 3' x 45' | Black/Yellow | ML702.14x3x45BYL | 715411926664 | $1,476.68 | $959.84 |
| 3' x 46' | Black/Yellow | ML702.14x3x46BYL | 715411926671 | $1,509.52 | $981.19 |
| 3' x 47' | Black/Yellow | ML702.14x3x47BYL | 715411926688 | $1,542.33 | $1,002.51 |
| 3' x 48' | Black/Yellow | ML702.14x3x48BYL | 715411926695 | $1,575.16 | $1,023.85 |
| 3' x 49' | Black/Yellow | ML702.14x3x49BYL | 715411926701 | $1,607.97 | $1,045.18 |
| 3' x 4' | Black/Yellow | ML702.14x3x4BYL | 715411926251 | $164.08 | $106.65 |
| 3' x 50' | Black/Yellow | ML702.14x3x50BYL | 715411926718 | $1,640.76 | $1,066.49 |
| 3' x 51' | Black/Yellow | ML702.14x3x51BYL | 715411926725 | $1,673.60 | $1,087.84 |
| 3' x 52' | Black/Yellow | ML702.14x3x52BYL | 715411926732 | $1,706.62 | $1,109.30 |
| 3' x 53' | Black/Yellow | ML702.14x3x53BYL | 715411926749 | $1,739.24 | $1,130.51 |
| 3' x 54' | Black/Yellow | ML702.14x3x54BYL | 715411926756 | $1,772.03 | $1,151.82 |
| 3' x 55' | Black/Yellow | ML702.14x3x55BYL | 715411926763 | $1,804.84 | $1,173.15 |
| 3' x 56' | Black/Yellow | ML702.14x3x56BYL | 715411926770 | $1,837.67 | $1,194.49 |
| 3' x 57' | Black/Yellow | ML702.14x3x57BYL | 715411926787 | $1,870.47 | $1,215.81 |
| 3' x 58' | Black/Yellow | ML702.14x3x58BYL | 715411926794 | $1,903.31 | $1,237.15 |
| 3' x 59' | Black/Yellow | ML702.14x3x59BYL | 715411926800 | $1,936.11 | $1,258.47 |
| 3' x 5' | Black/Yellow | ML702.14x3x5BYL | 715411000678 | $164.08 | $106.65 |
| 3' x 60' | Black/Yellow | ML702.14x3x60BYL | 715411926817 | $1,968.95 | $1,279.82 |
| 3' x 61' | Black/Yellow | ML702.14x3x61BYL | 715411926824 | $2,001.75 | $1,301.14 |
| 3' x 62' | Black/Yellow | ML702.14x3x62BYL | 715411926831 | $2,034.54 | $1,322.45 |
| 3' x 63' | Black/Yellow | ML702.14x3x63BYL | 715411926848 | $2,067.37 | $1,343.79 |
| 3' x 64' | Black/Yellow | ML702.14x3x64BYL | 715411926855 | $2,100.18 | $1,365.12 |
| 3' x 65' | Black/Yellow | ML702.14x3x65BYL | 715411926862 | $2,133.02 | $1,386.46 |
| 3' x 66' | Black/Yellow | ML702.14x3x66BYL | 715411926879 | $2,166.29 | $1,408.09 |
| 3' x 67' | Black/Yellow | ML702.14x3x67BYL | 715411926886 | $2,198.65 | $1,429.12 |
| 3' x 68' | Black/Yellow | ML702.14x3x68BYL | 715411926893 | $2,231.45 | $1,450.44 |
| 3' x 69' | Black/Yellow | ML702.14x3x69BYL | 715411926909 | $2,264.26 | $1,471.77 |
| 3' x 6' | Black/Yellow | ML702.14x3x6BYL | 715411926275 | $196.91 | $127.99 |
| 3' x 70' | Black/Yellow | ML702.14x3x70BYL | 715411926916 | $2,297.10 | $1,493.12 |
| 3' x 71' | Black/Yellow | ML702.14x3x71BYL | 715411926923 | $2,329.89 | $1,514.43 |
| 3' x 72' | Black/Yellow | ML702.14x3x72BYL | 715411926930 | $2,362.72 | $1,535.77 |
| 3' x 73' | Black/Yellow | ML702.14x3x73BYL | 715411926947 | $2,395.53 | $1,557.09 |
| 3' x 74' | Black/Yellow | ML702.14x3x74BYL | 715411926954 | $2,428.34 | $1,578.42 |
| 3' x 75' | Black/Yellow | ML702.14x3x75BYL | 715411000623 | $2,202.67 | $1,431.74 |
| 3' x 7' | Black/Yellow | ML702.14x3x7BYL | 715411926282 | $229.70 | $149.31 |
| 3' x 8' | Black/Yellow | ML702.14x3x8BYL | 715411926299 | $262.54 | $170.65 |
| 3' x 9' | Black/Yellow | ML702.14x3x9BYL | 715411926305 | $295.35 | $191.98 |
| Product Family | Thickness | Width | Length | Color | Product Number | ||||
| ML414 | . | 1516 | x | 2 | x | 10 | BK | = | ML414.1516x2x10BK |
| Suitable Environment | Dry Floors |
| Type | Non-Conductive |
| Customization Options | C1 - Custom Length |
| Solid or Drainage | Solid |
| Material | PVC |
| Recycled | <10% |
| Warranty | 1 Year |
| WARNING |
|
| Property | Test / Result |
|---|---|
| Flammability | ASTM D178-01: 0.224 mm /s |
| Taber Abrasion | Fed. Std. 191: 1% lost @ 1,000 cycles |
| Temperature Range | Not Available |
| Coefficient of Friction | ASTM F1677: Dry COF .91 |
| Compression Deflection | Not Available |
| Tear Strength | ASTM D412-98a Die C 1212 psi |
| ESD Rating | Not Applicable |
| Dielectric Strength | 1/4" thick: Surface conforms to ANSI/ASTM D178 01, Type II, Class 2: 30,000 volts. (Recommended Max Usage up to 17,000 volts) 3/8" thick: Surface conforms to ANSI/ASTM D178 01, Type II, Class 3: 40,000 volts. (Recommended Max Usage up to 26,500 volts) |
Key
- A = Performs well
- B = Slightly affected
- C = Moderately affected
- D = Highly affected
- U = Not recommended
- NT = Not tested
| Chemical | Urethane | Nitrile | PVC | CFR | SBR | Natural Rubber |
|---|---|---|---|---|---|---|
| Acetone | U | U | U | C | C | C |
| Animal Fats | NT | A | C | U | U | U |
| Bleach Solution (10% Dilute) | NT | B | B | C | C | C |
| Boric Acid | B | A | A | A | A | A |
| Brake Fluid | U | A | B | D | D | D |
| Brake Fluid (Silicone Based) | U | A | B | A | B | B |
| Chlorine Solution (3% Dilute) | C | A | B | C | C | C |
| Citric Acid | NT | A | C | C | C | U |
| Cutting Fluid (Mineral Oil Based) | U | B | B | B | C | D |
| Diesel Oil | U | A | B | U | U | U |
| Ethylene Acetate | NT | U | NT | U | U | U |
| Ethylene Glycol | B | A | A | A | A | A |
| Hydraulic Oil (Petroleum) | U | A | B | D | D | D |
| Hydrochloric Acid Cole (37% Dilute) | U | C | C | B | B | B |
| Isopropyl Alcohol | A | B | A | B | B | A |
| Lacquer Solvents | U | U | U | U | U | U |
| Lindol (Hydraulic Fluid) | NT | U | NT | U | U | U |
| MEK | U | U | U | U | U | U |
| Mineral Oil | C | A | B | A | B | U |
| Naptha | NT | C | U | U | U | U |
| Napthlene | U | U | U | U | U | U |
| Petroleum | U | C | B | D | D | D |
| Salt Water | A | A | B | B | B | C |
| Tolulene | U | U | U | U | U | U |
| Transmission Fluid (Type A) | U | B | A | C | U | U |
| Trichloroethane | U | U | U | U | U | U |
| Vegetable Oil | C | A | B | C | C | C |
Q: What is Switchboard matting?
A: Also referred to as non-conductive matting, these products serve as an insulative barrier to protect personnel from dangerous and deadly shock. It's commonly used around high voltage areas, fuse boxes, switchgear, control panels and heavy machinery.
Q: How often should switchboard matting be replaced?
A: All switchboard matting should be inspected and/or replaced every year to ensure the safety of personnel.
Q: Are the colors shown on your website the exact color I should expect to receive?
A: No, because monitors vary so there may be a slight variance in the color. If color choice is critical, we suggest that you order a sample. Due to manufacturing processes and material dye lots, color can vary, but our products fall within an industry-standard acceptable variation.
