Diamond-Plate Switchboard, Non-Conductive Matting, 1/4in Thick, Black w/ Yellow Borders
Be the first to review this product

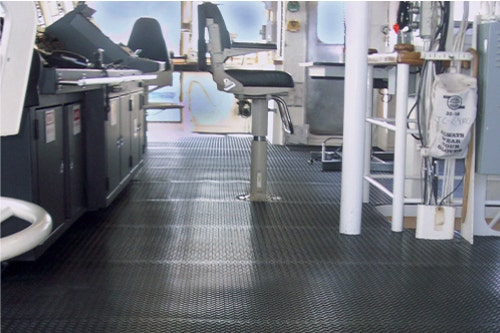

Designed to protect personnel in areas with dangerous high-voltage equipment, Diamond-plate Switchboard Floor Matting is used to insulate workers from high voltages. The Diamond-plate traction surface helps reduce risk of slips, trips and falls.
Also available in black, learn more about the complete line of switchboard matting.
- Conforms to ANSI/ASTM D-178-01 Type II, Class 2 standards
- Dielectric Strength: 30,000 volts
- Recommended Max Usage per ASTM D178-01: up to 17,000 volts
- Easy to clean Diamond-plate traction surface design adds safety and industrial style
Sale Price $106.65
Regular price $164.08
Starting At
Regular price
In stock
SKU ML701BYL
- +
Have a question? We're here to help!
Call 1-888-413-7317| Size | Color | Sku | UPC | Regular Price | Sell Price |
|---|---|---|---|---|---|
| 3 Ft. (.91 m) x 10 Ft. (3.05 m) | Black/Yellow | ML701.14x3x10BYL | 715411587391 | $328.19 | $213.32 |
| 3 Ft. (.91 m) x 11 Ft. (3.35 m) | Black/Yellow | ML701.14x3x11BYL | 715411587407 | $360.98 | $234.64 |
| 3 Ft. (.91 m) x 12 Ft. (3.66 m) | Black/Yellow | ML701.14x3x12BYL | 715411001989 | $393.78 | $255.96 |
| 3 Ft. (.91 m) x 13 Ft. (3.96 m) | Black/Yellow | ML701.14x3x13BYL | 715411587414 | $426.61 | $277.30 |
| 3 Ft. (.91 m) x 14 Ft. (4.27 m) | Black/Yellow | ML701.14x3x14BYL | 715411587421 | $459.42 | $298.62 |
| 3 Ft. (.91 m) x 15 Ft. (4.57 m) | Black/Yellow | ML701.14x3x15BYL | 715411587438 | $492.26 | $319.97 |
| 3 Ft. (.91 m) x 16 Ft. (4.88 m) | Black/Yellow | ML701.14x3x16BYL | 715411587445 | $525.05 | $341.28 |
| 3 Ft. (.91 m) x 17 Ft. (5.18 m) | Black/Yellow | ML701.14x3x17BYL | 715411587452 | $557.87 | $362.62 |
| 3 Ft. (.91 m) x 18 Ft. (5.49 m) | Black/Yellow | ML701.14x3x18BYL | 715411587469 | $590.69 | $383.95 |
| 3 Ft. (.91 m) x 19 Ft. (5.79 m) | Black/Yellow | ML701.14x3x19BYL | 715411587476 | $623.49 | $405.27 |
| 3 Ft. (.91 m) x 20 Ft. (6.1 m) | Black/Yellow | ML701.14x3x20BYL | 715411587483 | $656.32 | $426.61 |
| 3 Ft. (.91 m) x 21 Ft. (6.4 m) | Black/Yellow | ML701.14x3x21BYL | 715411587490 | $689.12 | $447.93 |
| 3 Ft. (.91 m) x 22 Ft. (6.71 m) | Black/Yellow | ML701.14x3x22BYL | 715411587506 | $721.96 | $469.27 |
| 3 Ft. (.91 m) x 23 Ft. (7.01 m) | Black/Yellow | ML701.14x3x23BYL | 715411587513 | $754.77 | $490.60 |
| 3 Ft. (.91 m) x 24 Ft. (7.32 m) | Black/Yellow | ML701.14x3x24BYL | 715411587520 | $787.57 | $511.92 |
| 3 Ft. (.91 m) x 25 Ft. (7.62 m) | Black/Yellow | ML701.14x3x25BYL | 715411587537 | $820.39 | $533.25 |
| 3 Ft. (.91 m) x 26 Ft. (7.92 m) | Black/Yellow | ML701.14x3x26BYL | 715411587544 | $853.20 | $554.58 |
| 3 Ft. (.91 m) x 27 Ft. (8.23 m) | Black/Yellow | ML701.14x3x27BYL | 715411587551 | $886.04 | $575.93 |
| 3 Ft. (.91 m) x 28 Ft. (8.53 m) | Black/Yellow | ML701.14x3x28BYL | 715411587568 | $919.77 | $597.85 |
| 3 Ft. (.91 m) x 29 Ft. (8.84 m) | Black/Yellow | ML701.14x3x29BYL | 715411587575 | $951.67 | $618.59 |
| 3 Ft. (.91 m) x 30 Ft. (9.14 m) | Black/Yellow | ML701.14x3x30BYL | 715411587582 | $984.47 | $639.91 |
| 3 Ft. (.91 m) x 31 Ft. (9.45 m) | Black/Yellow | ML701.14x3x31BYL | 715411587599 | $1,017.28 | $661.23 |
| 3 Ft. (.91 m) x 32 Ft. (9.75 m) | Black/Yellow | ML701.14x3x32BYL | 715411587605 | $1,050.10 | $682.57 |
| 3 Ft. (.91 m) x 33 Ft. (10.06 m) | Black/Yellow | ML701.14x3x33BYL | 715411587612 | $1,082.91 | $703.89 |
| 3 Ft. (.91 m) x 34 Ft. (10.36 m) | Black/Yellow | ML701.14x3x34BYL | 715411587629 | $1,115.74 | $725.23 |
| 3 Ft. (.91 m) x 35 Ft. (10.67 m) | Black/Yellow | ML701.14x3x35BYL | 715411587636 | $1,148.55 | $746.56 |
| 3 Ft. (.91 m) x 36 Ft. (10.97 m) | Black/Yellow | ML701.14x3x36BYL | 715411587643 | $1,181.36 | $767.88 |
| 3 Ft. (.91 m) x 37 Ft. (11.28 m) | Black/Yellow | ML701.14x3x37BYL | 715411587650 | $1,214.17 | $789.21 |
| 3 Ft. (.91 m) x 38 Ft. (11.58 m) | Black/Yellow | ML701.14x3x38BYL | 715411587667 | $1,246.98 | $810.54 |
| 3 Ft. (.91 m) x 39 Ft. (11.89 m) | Black/Yellow | ML701.14x3x39BYL | 715411587674 | $1,279.81 | $831.88 |
| 3 Ft. (.91 m) x 3 Ft. (.91 m) | Black/Yellow | ML701.14x3x3BYL | 715411587339 | $164.08 | $106.65 |
| 3 Ft. (.91 m) x 40 Ft. (12.19 m) | Black/Yellow | ML701.14x3x40BYL | 715411587681 | $1,312.63 | $853.21 |
| 3 Ft. (.91 m) x 41 Ft. (12.5 m) | Black/Yellow | ML701.14x3x41BYL | 715411587698 | $1,345.44 | $874.54 |
| 3 Ft. (.91 m) x 42 Ft. (12.8 m) | Black/Yellow | ML701.14x3x42BYL | 715411587704 | $1,378.26 | $895.87 |
| 3 Ft. (.91 m) x 43 Ft. (13.11 m) | Black/Yellow | ML701.14x3x43BYL | 715411587711 | $1,411.06 | $917.19 |
| 3 Ft. (.91 m) x 44 Ft. (13.41 m) | Black/Yellow | ML701.14x3x44BYL | 715411587728 | $1,443.89 | $938.53 |
| 3 Ft. (.91 m) x 45 Ft. (13.72 m) | Black/Yellow | ML701.14x3x45BYL | 715411587735 | $1,476.68 | $959.84 |
| 3 Ft. (.91 m) x 46 Ft. (14.02 m) | Black/Yellow | ML701.14x3x46BYL | 715411587742 | $1,509.52 | $981.19 |
| 3 Ft. (.91 m) x 47 Ft. (14.33 m) | Black/Yellow | ML701.14x3x47BYL | 715411587759 | $1,542.33 | $1,002.51 |
| 3 Ft. (.91 m) x 48 Ft. (14.63 m) | Black/Yellow | ML701.14x3x48BYL | 715411587766 | $1,575.16 | $1,023.85 |
| 3 Ft. (.91 m) x 49 Ft. (14.94 m) | Black/Yellow | ML701.14x3x49BYL | 715411587773 | $1,607.97 | $1,045.18 |
| 3 Ft. (.91 m) x 4 Ft. (1.22 m) | Black/Yellow | ML701.14x3x4BYL | 715411587346 | $164.08 | $106.65 |
| 3 Ft. (.91 m) x 50 Ft. (15.24 m) | Black/Yellow | ML701.14x3x50BYL | 715411587780 | $1,640.76 | $1,066.49 |
| 3 Ft. (.91 m) x 51 Ft. (15.54 m) | Black/Yellow | ML701.14x3x51BYL | 715411587797 | $1,673.60 | $1,087.84 |
| 3 Ft. (.91 m) x 52 Ft. (15.85 m) | Black/Yellow | ML701.14x3x52BYL | 715411587803 | $1,706.62 | $1,109.30 |
| 3 Ft. (.91 m) x 53 Ft. (16.15 m) | Black/Yellow | ML701.14x3x53BYL | 715411587810 | $1,739.24 | $1,130.51 |
| 3 Ft. (.91 m) x 54 Ft. (16.46 m) | Black/Yellow | ML701.14x3x54BYL | 715411587827 | $1,772.03 | $1,151.82 |
| 3 Ft. (.91 m) x 55 Ft. (16.76 m) | Black/Yellow | ML701.14x3x55BYL | 715411587834 | $1,804.84 | $1,173.15 |
| 3 Ft. (.91 m) x 56 Ft. (17.07 m) | Black/Yellow | ML701.14x3x56BYL | 715411587841 | $1,837.67 | $1,194.49 |
| 3 Ft. (.91 m) x 57 Ft. (17.37 m) | Black/Yellow | ML701.14x3x57BYL | 715411587858 | $1,870.47 | $1,215.81 |
| 3 Ft. (.91 m) x 58 Ft. (17.68 m) | Black/Yellow | ML701.14x3x58BYL | 715411587865 | $1,903.31 | $1,237.15 |
| 3 Ft. (.91 m) x 59 Ft. (17.98 m) | Black/Yellow | ML701.14x3x59BYL | 715411587872 | $1,936.11 | $1,258.47 |
| 3 Ft. (.91 m) x 5 Ft. (1.52 m) | Black/Yellow | ML701.14x3x5BYL | 715411000586 | $164.08 | $106.65 |
| 3 Ft. (.91 m) x 60 Ft. (18.29 m) | Black/Yellow | ML701.14x3x60BYL | 715411587889 | $1,968.95 | $1,279.82 |
| 3 Ft. (.91 m) x 61 Ft. (18.59 m) | Black/Yellow | ML701.14x3x61BYL | 715411587896 | $2,001.75 | $1,301.14 |
| 3 Ft. (.91 m) x 62 Ft. (18.9 m) | Black/Yellow | ML701.14x3x62BYL | 715411587902 | $2,034.54 | $1,322.45 |
| 3 Ft. (.91 m) x 63 Ft. (19.2 m) | Black/Yellow | ML701.14x3x63BYL | 715411587919 | $2,067.37 | $1,343.79 |
| 3 Ft. (.91 m) x 64 Ft. (19.51 m) | Black/Yellow | ML701.14x3x64BYL | 715411587926 | $2,100.18 | $1,365.12 |
| 3 Ft. (.91 m) x 65 Ft. (19.81 m) | Black/Yellow | ML701.14x3x65BYL | 715411587933 | $2,133.02 | $1,386.46 |
| 3 Ft. (.91 m) x 66 Ft. (20.12 m) | Black/Yellow | ML701.14x3x66BYL | 715411587940 | $2,166.29 | $1,408.09 |
| 3 Ft. (.91 m) x 67 Ft. (20.42 m) | Black/Yellow | ML701.14x3x67BYL | 715411587957 | $2,198.65 | $1,429.12 |
| 3 Ft. (.91 m) x 68 Ft. (20.73 m) | Black/Yellow | ML701.14x3x68BYL | 715411587964 | $2,231.45 | $1,450.44 |
| 3 Ft. (.91 m) x 69 Ft. (21.03 m) | Black/Yellow | ML701.14x3x69BYL | 715411587971 | $2,264.26 | $1,471.77 |
| 3 Ft. (.91 m) x 6 Ft. (1.83 m) | Black/Yellow | ML701.14x3x6BYL | 715411587353 | $196.91 | $127.99 |
| 3 Ft. (.91 m) x 70 Ft. (21.34 m) | Black/Yellow | ML701.14x3x70BYL | 715411587988 | $2,297.10 | $1,493.12 |
| 3 Ft. (.91 m) x 71 Ft. (21.64 m) | Black/Yellow | ML701.14x3x71BYL | 715411587995 | $2,329.89 | $1,514.43 |
| 3 Ft. (.91 m) x 72 Ft. (21.95 m) | Black/Yellow | ML701.14x3x72BYL | 715411588008 | $2,362.72 | $1,535.77 |
| 3 Ft. (.91 m) x 73 Ft. (22.25 m) | Black/Yellow | ML701.14x3x73BYL | 715411588015 | $2,395.53 | $1,557.09 |
| 3 Ft. (.91 m) x 74 Ft. (22.56 m) | Black/Yellow | ML701.14x3x74BYL | 715411588022 | $2,428.34 | $1,578.42 |
| 3 Ft. (.91 m) x 75 Ft. (22.86 m) | Black/Yellow | ML701.14x3x75BYL | 715411004072 | $2,202.67 | $1,431.74 |
| 3 Ft. (.91 m) x 7 Ft. (2.13 m) | Black/Yellow | ML701.14x3x7BYL | 715411587360 | $229.70 | $149.31 |
| 3 Ft. (.91 m) x 8 Ft. (2.44 m) | Black/Yellow | ML701.14x3x8BYL | 715411587377 | $262.54 | $170.65 |
| 3 Ft. (.91 m) x 9 Ft. (2.74 m) | Black/Yellow | ML701.14x3x9BYL | 715411587384 | $295.35 | $191.98 |
See an example of how Wearwell puts together their part numbers.
| Product Family | Thickness | Width | Length | Color | Product Number | ||||
| ML414 | . | 1516 | x | 2 | x | 10 | BK | = | ML414.1516x2x10BK |
| Suitable Environment | Dry Floors |
| Type | Non-Conductive |
| Customization Options | C1 - Custom Length |
| Solid or Drainage | Solid |
| Material | PVC |
| Recycled | <10% |
| Warranty | 1 Year |
| WARNING |
|
| Property | Test / Result |
|---|---|
| Flammability | ASTM D178-01 / Maximum 12.7 mm after 30sec. |
| Taber Abrasion | Not Available |
| Temperature Range | Not Available |
| Coefficient of Friction | Not Available |
| Compression Deflection | Not Available |
| Tear Strength | ASTM D412-98a Die C results: 1212 psi |
| ESD Rating | Not Applicable |
| Dielectric Strength | Surface conforms to ANSI/ASTM D178 01, Type II, Class 2: 30,000 volts. (Recommended Max Usage up to 17,000 volts) |
Key
- A = Performs well
- B = Slightly affected
- C = Moderately affected
- D = Highly affected
- U = Not recommended
- NT = Not tested
| Chemical | Urethane | Nitrile | PVC | CFR | SBR | Natural Rubber |
|---|---|---|---|---|---|---|
| Acetone | U | U | U | C | C | C |
| Animal Fats | NT | A | C | U | U | U |
| Bleach Solution (10% Dilute) | NT | B | B | C | C | C |
| Boric Acid | B | A | A | A | A | A |
| Brake Fluid | U | A | B | D | D | D |
| Brake Fluid (Silicone Based) | U | A | B | A | B | B |
| Chlorine Solution (3% Dilute) | C | A | B | C | C | C |
| Citric Acid | NT | A | C | C | C | U |
| Cutting Fluid (Mineral Oil Based) | U | B | B | B | C | D |
| Diesel Oil | U | A | B | U | U | U |
| Ethylene Acetate | NT | U | NT | U | U | U |
| Ethylene Glycol | B | A | A | A | A | A |
| Hydraulic Oil (Petroleum) | U | A | B | D | D | D |
| Hydrochloric Acid Cole (37% Dilute) | U | C | C | B | B | B |
| Isopropyl Alcohol | A | B | A | B | B | A |
| Lacquer Solvents | U | U | U | U | U | U |
| Lindol (Hydraulic Fluid) | NT | U | NT | U | U | U |
| MEK | U | U | U | U | U | U |
| Mineral Oil | C | A | B | A | B | U |
| Naptha | NT | C | U | U | U | U |
| Napthlene | U | U | U | U | U | U |
| Petroleum | U | C | B | D | D | D |
| Salt Water | A | A | B | B | B | C |
| Tolulene | U | U | U | U | U | U |
| Transmission Fluid (Type A) | U | B | A | C | U | U |
| Trichloroethane | U | U | U | U | U | U |
| Vegetable Oil | C | A | B | C | C | C |
Q: What is Switchboard matting?
A: Also referred to as non-conductive matting, these products serve as an insulative barrier to protect personnel from dangerous and deadly shock. It's commonly used around high voltage areas, fuse boxes, switchgear, control panels and heavy machinery.
Q: How is the electrical insulation value of the matting rated?
A: In accordance with ASTM D149-97a testing standards, this mat meets the requirement of a minimum of 30,000 volts and recommended max usage of up to 17,000 volts.
Q: How often should switchboard matting be replaced?
A: All switchboard matting should be inspected and/or replaced every year to ensure the safety of personnel.
Q: Are the colors shown on your website the exact color I should expect to receive?
A: No, because monitors vary so there may be a slight variance in the color. If color choice is critical, we suggest that you order a sample. Due to manufacturing processes and material dye lots, color can vary, but our products fall within an industry-standard acceptable variation.
