FOUNDATION™ DIY Tile 9in x18in - For Use with Foundation Work Platform Kits

Group
MLFT.DIY
Starting At $41.60 Regular Price $52.00

The new FOUNDATION™ DIY tiles allow for customization in 1" (2.54 cm) increments to provide a perfect fit in tight spaces. Full customization with minimum effort!

Available in 3 surface styles:

  • Smooth - lightly-textured, designed for foot traffic and cart use

  • Open - allows for easy drainage if any fluids and airflow while preventing slips

  • Diamond-Plate - durable traction for harsher work environments

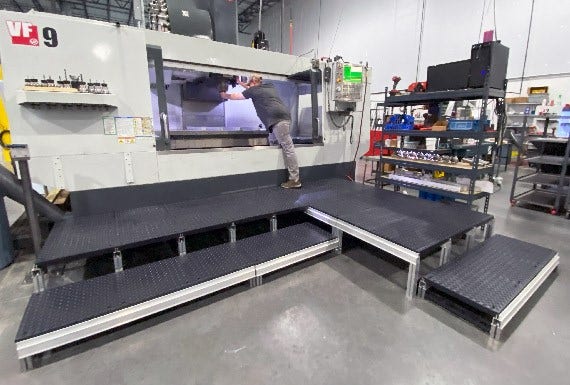

These 9" x 18" tiles are for use with the FOUNDATION modular platform system to elevate employees to the proper height for optimum health, safety, and performance for standing workers. Quickly build and install FOUNDATION™ in the fraction of the time of traditional (stick built) platforms with basic carpenter skills. Fitting tight spaces isn’t a problem with DIY tiles for FOUNDATION™ Work Platforms - patented modular platform system that puts you in control!

This surprisingly lightweight system provides all the support your team demands and more! Each 2" (5 cm) thick tile boasts a load rating of 400 lbs. and is manufactured of 100% recycled polypropylene to stand up to a wide range of chemicals.

  • For use with FOUNDATION modular work platform system
  • 400 lb. (181.5kg) load capacity per tile
  • 100% post-consumer Polypropylene
  • Aluminum support strips provide extra support
  • Available in single tiles
  • 9" x 18" (20 cm x 45 cm)
  • Made in the USA

Click here to build you own FOUNDATION platform system today!

+ Read More
Have a question? We're here to help! Give us a call.1-888-412-8317

FOUNDATION platforms are fully customizable and easy to install. You can mix and match surface patterns, lengths, widths, and heights to find the best fit for your workspace.

Learn how to install FOUNDATION Platforms fast and easy!

FOUNDATION is a hassle-free modular platform system that puts an end to the excessive planning, purchasing, labor, and all of the unexpected expenses that come with other platforms. This new platform system elimanates the headache that comes with traditional platform designing. Take any platform idea you have and make it a reality with our fully customizable FOUNDATION modular platform system!

Click the video to see how fast and easy it is to install from start to finish!

Putting Together Wearwell Part Numbers
See an example of how Wearwell puts together their part numbers.
Size Color Sku Price
Smooth Black MLF01.9x18BK $52.00
Open Drainage Black MLF02.9x18BK $52.00
Diamond-plate Black MLF03.9x18BK $52.00
Parameters of Category: Specifications - General
EnvironmentDry, Wet
Type
Customization LevelC3
Solid or Drainage
CompoundPolypropylene
Recycled100%
Warranty1 Year
WARNING
Test Specification & Results
PropertyTest / Result
Flammability FMVSS 302: Pass B
Taber Abrasion ASTM D3884: 0% @1000 cycles
Temperature Range 32-160F
Coefficient of Friction ASTM F2913-19: 1.09 dry, 0.90 wet
Compression Deflection Not Applicable
Tear Strength Not Applicable
ESD Rating Not Applicable
Dielectric Strength Not Applicable

Key

  • A = Performs well
  • B = Slightly affected
  • C = Moderately affected
  • D = Highly affected
  • U = Not recommended
  • NT = Not tested
Chemical Urethane Nitrile PVC CFR SBR Natural Rubber
Acetone U U U C C C
Animal Fats NT A C U U U
Bleach Solution (10% Dilute) NT B B C C C
Boric Acid B A A A A A
Brake Fluid U A B D D D
Brake Fluid (Silicone Based) U A B A B B
Chlorine Solution (3% Dilute) C A B C C C
Citric Acid NT A C C C U
Cutting Fluid (Mineral Oil Based) U B B B C D
Diesel Oil U A B U U U
Ethylene Acetate NT U NT U U U
Ethylene Glycol B A A A A A
Hydraulic Oil (Petroleum) U A B D D D
Hydrochloric Acid Cole (37% Dilute) U C C B B B
Isopropyl Alcohol A B A B B A
Lacquer Solvents U U U U U U
Lindol (Hydraulic Fluid) NT U NT U U U
MEK U U U U U U
Mineral Oil C A B A B U
Naptha NT C U U U U
Napthlene U U U U U U
Petroleum U C B D D D
Salt Water A A B B B C
Tolulene U U U U U U
Transmission Fluid (Type A) U B A C U U
Trichloroethane U U U U U U
Vegetable Oil C A B C C C
