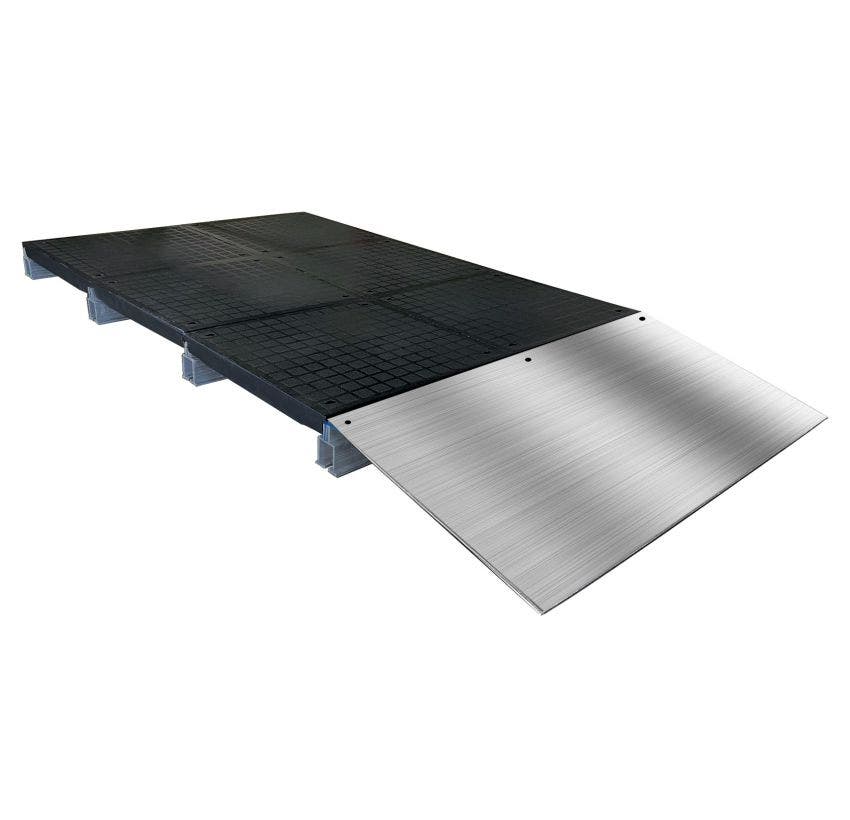

FOUNDATION Ramp, 36" Wide
FOUNDATION Ramps create a smooth transition on and off FOUNDATION work platforms. 36” Wide sections are placed at the end of the platform, locking in safe and securely. Made from heavy duty aluminum, 3 standard FOUNDATION ramps are available to cover platform heights from 4-12”. Need Extra Traction? GripSafe Tape is available.
- 36” Wide
- 3 sizes to account for different height platforms
- Approximately 12-16 degree slope (pictured)
- Safe transition on/off FOUNDATION Platform
- 4-6” Height: Ramp is 18"L x 36"W
- 8-10” Height: Ramp is 36"L x 36"W
- 10-12” Height: Ramp is 42"L x 36"W
- Heavy duty Aluminum build
- Need Extra Traction? GripSafe Tape is available Traction in a snap
Have a question? We're here to help!
Call 1-888-413-7317| Size | Sku | UPC | Regular Price | Sell Price | Dimensions |
|---|---|---|---|---|---|
| 12 In. (30.5 cm) | MLF1.R10-12x36.AL | 715411011742 | $1,625.00 | $1,300.00 | |
| 4 In. (10.2 cm) | MLF1.R4-6x36.AL | 715411011674 | $480.00 | $384.00 | |
| 8 In. (20.3 cm) | MLF1.R6-10x36.AL | 715411011698 | $960.00 | $768.00 |
| Product Family | Thickness | Width | Length | Color | Product Number | ||||
| ML414 | . | 1516 | x | 2 | x | 10 | BK | = | ML414.1516x2x10BK |
| Suitable Environment | Dry Floors |
| Type | Ramp |
| Customization Options | Custom Ramps Available |
| Solid or Drainage | Solid |
| Material | Aluminum |
| Recycled | 90% |
| Warranty | 1 Year |
| WARNING |
| Property | Test / Result |
|---|---|
| Flammability | Not Applicable |
| Taber Abrasion | Not Applicable |
| Temperature Range | Not Applicable |
| Coefficient of Friction | Not Applicable |
| Compression Deflection | Not Applicable |
| Tear Strength | Not Applicable |
| ESD Rating | Not Applicable |
| Dielectric Strength | Not Applicable |
Key
- A = Performs well
- B = Slightly affected
- C = Moderately affected
- D = Highly affected
- U = Not recommended
- NT = Not tested
| Chemical | Urethane | Nitrile | PVC | CFR | SBR | Natural Rubber |
|---|---|---|---|---|---|---|
| Acetone | U | U | U | C | C | C |
| Animal Fats | NT | A | C | U | U | U |
| Bleach Solution (10% Dilute) | NT | B | B | C | C | C |
| Boric Acid | B | A | A | A | A | A |
| Brake Fluid | U | A | B | D | D | D |
| Brake Fluid (Silicone Based) | U | A | B | A | B | B |
| Chlorine Solution (3% Dilute) | C | A | B | C | C | C |
| Citric Acid | NT | A | C | C | C | U |
| Cutting Fluid (Mineral Oil Based) | U | B | B | B | C | D |
| Diesel Oil | U | A | B | U | U | U |
| Ethylene Acetate | NT | U | NT | U | U | U |
| Ethylene Glycol | B | A | A | A | A | A |
| Hydraulic Oil (Petroleum) | U | A | B | D | D | D |
| Hydrochloric Acid Cole (37% Dilute) | U | C | C | B | B | B |
| Isopropyl Alcohol | A | B | A | B | B | A |
| Lacquer Solvents | U | U | U | U | U | U |
| Lindol (Hydraulic Fluid) | NT | U | NT | U | U | U |
| MEK | U | U | U | U | U | U |
| Mineral Oil | C | A | B | A | B | U |
| Naptha | NT | C | U | U | U | U |
| Napthlene | U | U | U | U | U | U |
| Petroleum | U | C | B | D | D | D |
| Salt Water | A | A | B | B | B | C |
| Tolulene | U | U | U | U | U | U |
| Transmission Fluid (Type A) | U | B | A | C | U | U |
| Trichloroethane | U | U | U | U | U | U |
| Vegetable Oil | C | A | B | C | C | C |
Q: What is the weight load of the Wearwell FOUNDATION Ramp?
A: The uniform weight load of FOUNDATION ramps is approximately 177lbs/sq ft
Q: Are corners available for FOUNDATION platforms?
A: Yes, corners are available as a custom add on. Please reach out via our contact form for custom ramps.
Q: Do I need any fasteners for the platform?
A: There are no fasteners required for the FOUNDATION ramp to attach it to the FOUNDATION platform
Q: What if I need a shorter ramp for my platform?
A: Please contact us at for a custom ramp in this situation
Q: How do I determine how many ramps I need for my FOUNDATION work platform?
A: Standard ramps are 36" wide. Generally only one on-ramp is necessary for a platform. However, multiple ramps can be added side by side to create wider ramps. Divide ramp width needed by 36" to get the number of ramps needed.
Q: Are the FOUNDATION work platform ramps slippery?
A: Ramps are not slippery when clean and dry. If slips are a concern, we recommend GripSafe tape be purchased to be added to the ramp on-site.
Q: How do I know if I need ramps for my work platform?
A: Ramps are never required. Companies can decide on an application by application basis.
Q: What if I need another color for my work platform ramps?
A: Yellow GripSafe Tape is available to place atop ramps for color and traction. Ramps only come in silver color.
Q: Do the edges of FOUNDATION ramps pose a tripping hazard?
A: Safety is priority number one here at Wearwell. FOUNDATION ramps are designed to provide safe on-off access for all users. All FOUNDATION ramps meet OSHA regulations.
Q: What gauge info is available for the aluminum?
A: The gauge of aluminum on each FOUNDATION ramp will meet a 300 lb load rating requirement.
Q: Are the ramps suitable for wheeled traffic like carts and dollies?
A: Yes, FOUNDATION ramps are great for wheeled traffic. We recommend a minimum wheel diameter of 4 inches.
