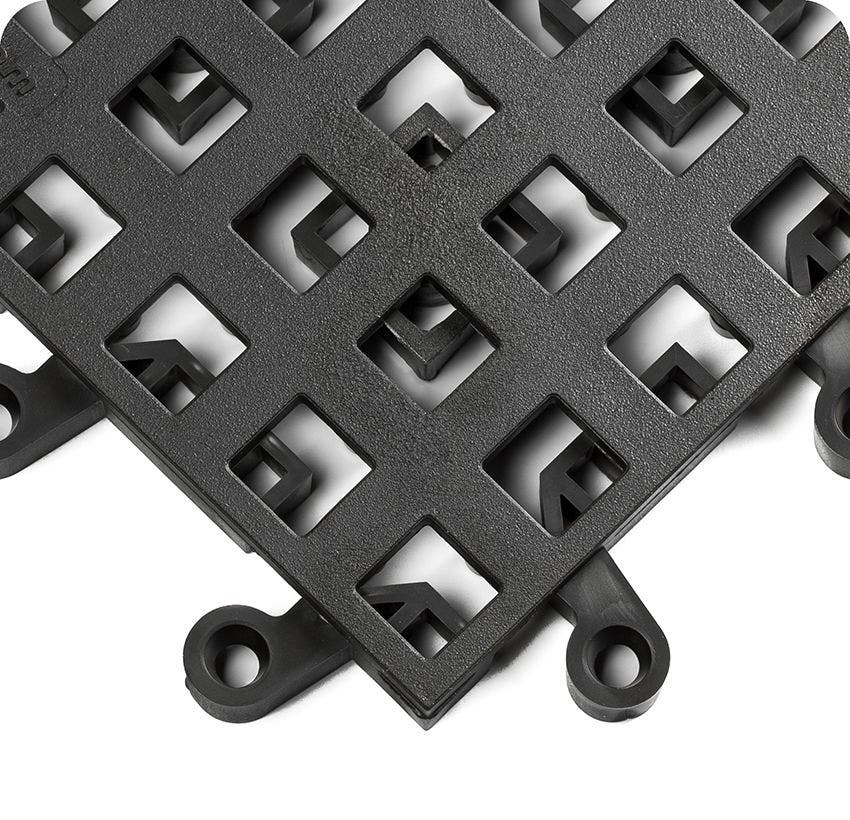

ErgoDeck Heavy Duty Open Ergonomic Modular Tiles
Be the first to review this product
A dependable, ergonomic floor that will withstand heavy use. The LockSafe Positive Interlocking System delivers secure connections. Perfect for lean manufacturing, tiles can be unlocked and repositioned as work centers change to fit customer needs.
- U.S. PATENT NO.D502,557; D520,650
- Standing relief in wet or dry applications
- Customize in 3" increments to fit any area or configuration
- Positive Interlocking System prevents separation
- Easily replace single pieces or sections as needed to reduce costs
- 100% Silicone Free PVC tiles provide maximum durability
- Available in Solid and Drainage version and with GRITSHIELD for extra traction
- Overall thickness 7/8”
- Each case covers 22.5 sq. feet
Learn more about the different versions of ErgoDeck in our blog - ErgoDeck Ergonomic Interlocking Floor Tiles – Which Version Should I Choose?
Read moreStarting at $52.27 To $65.34
To $1,125.87 To $1,407.34
In stock
SKU ML560
Have a question? We're here to help!
Call 1-888-413-7317ErgoDeck Heavy-Duty by Wearwell is the best choice in demanding applications with chemicals and heavy cart or foot traffic. Engineered with a box-spring underside ErgoDeck Heavy-Duty provides anti-fatigue benefits and reduces the impact of heel strike that contributes to musculoskeletal disorders.
The optional 6" (15 cm) side safety ramps and corners have countersunk holes for semi-permanent installation.
Quality made in the USA.
| SKU | Short Description | Color | Thickness | Dimensions | UOM | UPC | Regular Price | Sell Price |
|---|---|---|---|---|---|---|---|---|
| ML560.78x18x18BK-CS10 | ErgoDeck Heavy Duty Open Grid 18 x 18,Black Case,7/8in x 1ft 6in x 1ft 6in,Case of 10 | Black | 18" x 18" | CS-10 | 715411510412 | $451.59 | $361.27 | |
| ML560.78x18x18CH-CS10 | ErgoDeck Heavy Duty Open Grid 18 x 18,Charcoal Case,7/8in x 1ft 6in x 1ft 6in,Case of 10 | Charcoal | 18" x 18" | CS-10 | 71541170100 | $375.10 | $0.00 |
Ramps and accessories
| SKU | Short Description | Color | Thickness | Dimensions | UOM | UPC | Regular Price | Sell Price |
|---|---|---|---|---|---|---|---|---|
| Ramp | ||||||||
| ML560.78x6x18BK-CS10 | ErgoDeck ramps for smoother, safer surface transitions | Black | 6" x 18" | CS-10 | 715411800506 | $177.47 | $141.98 | |
| ML560.78x6x18YL-CS10 | ErgoDeck ramps for smoother, safer surface transitions | Yellow | 6" x 18" | CS-10 | 715411511754 | $177.47 | $141.98 | |
| ML560.78x6x36AL | ErgoDeck® Aluminum Transition Ramps - Straight section high-strength, lightweight, and chemical resistant, use for smoother, safer surface transitions | Aluminum | 6" x 36" | EA | 715411707225 | $192.63 | $154.10 | |
| ML561.78x6x18BK-CS10 | ErgoDeck® Ramps - Straight section with Grit Shield, heavy-duty, use for smoother, safer surface transitions | Black | 6" x 18" | CS-10 | 715411197460 | $310.40 | $248.32 | |
| Outside corner | ||||||||
| ML560.78x6x15x15BK-CS4 | ErgoDeck® Ramps - Outside corner, heavy-duty, use for smoother, safer surface transitions | Black | 6" x 15" x 15 | CS-4 | 715411800803 | $258.83 | $207.06 | |
| ML560.78x6x15x15YL-CS4 | ErgoDeck® Ramps - Outside corner, heavy-duty, use for smoother, safer surface transitions | Yellow | 6" x 15" x 15" | CS-4 | 715411518333 | $258.83 | $207.06 | |
| ML560.78x6x15x15AL | ErgoDeck® Aluminum Ramps - Outside corner, high-strength, lightweight, and chemical resistant, use for smoother, safer surface transitions | Aluminum | 7/8" | 6" x 15" x 15" | EA | 715411703548 | $192.63 | $154.10 |
| ML561.78x6x15x15BK-CS4 | ErgoDeck® Ramps - Outside corner with Gritshield®, heavy-duty, use for smoother, safer surface transitions | Black | 6" x 15" x 15" | CS-4 | 715411200108 | $452.72 | $362.18 | |
| Inside corner | ||||||||
| ML560.78x6x9x9BK | ErgoDeck® Transition Ramps - Inside corner, heavy-duty, for smoother, safer surface transitions | Black | 6" x 9" x 9" | EA | 715411800704 | $65.34 | $52.27 | |
| ML560.78x6x9x9YL | ErgoDeck® Ramps - Inside corner, heavy-duty, for smoother, safer surface transitions | Yellow | 6" x 9" x 9" | EA | 715411512287 | $65.34 | $52.27 | |
| ML560.78x6x9x9AL | ErgoDeck® Ramps - Aluminum inside corner, heavy-duty, for smoother, safer surface transitions | Aluminum | 7/8" | 6" x 9" x 9" | EA | 715411703555 | $192.63 | $154.10 |
| ML561.78x6x9x9BK | ErgoDeck® Ramps - Inside corner with Grit Shield, heavy-duty, use for smoother, safer surface transitions | Black | 6" x 9" x 9" | EA | 715411198771 | $114.30 | $91.44 | |
See an example of how Wearwell puts together their part numbers.
| Product Family | Thickness | Width | Length | Color | Product Number | ||||
| ML414 | . | 1516 | x | 2 | x | 10 | BK | = | ML414.1516x2x10BK |
| Suitable Environment | Dry Floors, Wet Area, Oily |
| Type | Anti-Fatigue Flooring |
| Customization Options | C3 - Full Custom (Length, Width, Shape) |
| Solid or Drainage | Drainage |
| Material | PVC |
| Recycled | >80% |
| Warranty | Lifetime |
| WARNING |
|
| Property | Test / Result |
|---|---|
| Flammability | MVSS 302 / 'A'; Rating |
| Taber Abrasion | ASTM D 3884 / 1% loss |
| Temperature Range | 0 to 120 F |
| Coefficient of Friction | ASTM F1677 / Dry: COF = .65 / Wet: COF = .42 |
| Compression Deflection | ASTM D575-91 / 4.84% |
| Tear Strength | Not Available |
| ESD Rating | Not Available |
| Dielectric Strength | Not Available |
Key
- A = Performs well
- B = Slightly affected
- C = Moderately affected
- D = Highly affected
- U = Not recommended
- NT = Not tested
| Chemical | Urethane | Nitrile | PVC | CFR | SBR | Natural Rubber |
|---|---|---|---|---|---|---|
| Acetone | U | U | U | C | C | C |
| Animal Fats | NT | A | C | U | U | U |
| Bleach Solution (10% Dilute) | NT | B | B | C | C | C |
| Boric Acid | B | A | A | A | A | A |
| Brake Fluid | U | A | B | D | D | D |
| Brake Fluid (Silicone Based) | U | A | B | A | B | B |
| Chlorine Solution (3% Dilute) | C | A | B | C | C | C |
| Citric Acid | NT | A | C | C | C | U |
| Cutting Fluid (Mineral Oil Based) | U | B | B | B | C | D |
| Diesel Oil | U | A | B | U | U | U |
| Ethylene Acetate | NT | U | NT | U | U | U |
| Ethylene Glycol | B | A | A | A | A | A |
| Hydraulic Oil (Petroleum) | U | A | B | D | D | D |
| Hydrochloric Acid Cole (37% Dilute) | U | C | C | B | B | B |
| Isopropyl Alcohol | A | B | A | B | B | A |
| Lacquer Solvents | U | U | U | U | U | U |
| Lindol (Hydraulic Fluid) | NT | U | NT | U | U | U |
| MEK | U | U | U | U | U | U |
| Mineral Oil | C | A | B | A | B | U |
| Naptha | NT | C | U | U | U | U |
| Napthlene | U | U | U | U | U | U |
| Petroleum | U | C | B | D | D | D |
| Salt Water | A | A | B | B | B | C |
| Tolulene | U | U | U | U | U | U |
| Transmission Fluid (Type A) | U | B | A | C | U | U |
| Trichloroethane | U | U | U | U | U | U |
| Vegetable Oil | C | A | B | C | C | C |
Q: What are the benefits of using anti-fatigue flooring?
A: Anti-fatigue flooring is designed to offer a wide range of benefits to employees and employers. Anti-Fatigue flooring can increase worker productivity, reduce slips, trips and falls and improve the overall health of your employees.
Q: How does anti-fatigue flooring improve overall health of my employees?
A: Standing long-term, especially on hard, unforgiving concrete leads to lower back pain, swelling of joints and poor circulation that can lead to varicose veins. Standing on anti-fatigue flooring allows for continuous muscle movement which leads to increased blood flow to the legs, feet and back. Continuous blood circulation reduces fatigue, alleviates back pain and reduces swelling.
Q: How does anti-fatigue flooring increase employee productivity?
A: Fatigue eventually leads to lack of focus and concentration on the task at hand. Anti-fatigue flooring reduces worker fatigue allowing them to remain focused on the job at hand.
Q: What is meant by "customizable in 3" increments"?
A: Unlike other modular tiles available in the market, our LockSafe connection can be cut every 3" without losing the ability to connect to adjoining tiles.
Q: How do I cut ErgoDeck tiles?
A: ErgoDeck is a robust product. While it can be cut with a utility knife, we suggest a band saw or similar cutting equipment for larger installations.
Q: Do I need to use adhesives or special tools?
A: One of the biggest benefits of the LockSafe system is a secure, dependable connection that snaps together and holds tight in-use, but zips apart for reconfiguration or replacement! No tools are necessary for the assembly or disassembly, however, a rubber mallet is sometimes used in installation to quickly "lock" the connectors.
