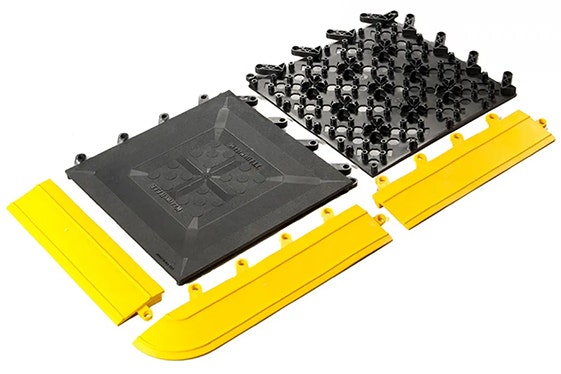

ErgoDeck w/ Integrated No-Slip Cleats Solid





    Build Yours

    This non-slip flooring is engineered to deliver exceptional traction in even the most extreme environments. The patented LockSafe

    • Unmatched slip prevention
    • Customize in 3" increments to fit any area or configuration
    • Can withstand powerwashing and aggressive maintenance
    • 100% Silicone Free PVC tiles provide maximum durability

    + Read More
    Have a question? We're here to help! Give as a call.1-888-412-8317

    Individual size are not available for this product. Please use the product configurator above.

    Parameters of Category: Specifications - General
    EnvironmentWet, Oily, Slippery
    TypeNon-slip Safety Flooring
    Customization LevelC3 - Full Custom (Length, Width, Shape)
    Solid or DrainageSolid
    Warranty3 Years

    Warning Symbol WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate, which is known to the State of California to cause cancer and Di-isodecyl phthalate, which is known to the State of California to cause reproductive harm. For more information, go to

    Test Specification & Results
    PropertyTest / Result
    Flammability MVSS 302 / 'A'; Rating
    Taber Abrasion ASTM D 3884 / less than 1% loss
    Temperature Range 10 to 110 F
    Coefficient of Friction ASTM F1677 / Dry: COF = 1.10 / Wet: COF = 1.10
    Compression Deflection ASTM D575-91 / 8.03%
    Tear Strength Not Available
    ESD Rating Not Available
    Dielectric Strength Not Available


    • A = Performs well
    • B = Slightly affected
    • C = Moderately affected
    • D = Highly affected
    • U = Not recommended
    • NT = Not tested
    Chemical Urethane Nitrile PVC CFR SBR Natural Rubber
    Acetone U U U C C C
    Animal Fats NT A C U U U
    Bleach Solution (10% Dilute) NT B B C C C
    Boric Acid B A A A A A
    Brake Fluid U A B D D D
    Brake Fluid (Silicone Based) U A B A B B
    Chlorine Solution (3% Dilute) C A B C C C
    Citric Acid NT A C C C U
    Cutting Fluid (Mineral Oil Based) U B B B C D
    Diesel Oil U A B U U U
    Ethylene Acetate NT U NT U U U
    Ethylene Glycol B A A A A A
    Hydraulic Oil (Petroleum) U A B D D D
    Hydrochloric Acid Cole (37% Dilute) U C C B B B
    Isopropyl Alcohol A B A B B A
    Lacquer Solvents U U U U U U
    Lindol (Hydraulic Fluid) NT U NT U U U
    MEK U U U U U U
    Mineral Oil C A B A B U
    Naptha NT C U U U U
    Napthlene U U U U U U
    Petroleum U C B D D D
    Salt Water A A B B B C
    Tolulene U U U U U U
    Transmission Fluid (Type A) U B A C U U
    Trichloroethane U U U U U U
    Vegetable Oil C A B C C C
    Write Your Own Review
    You're reviewing:ErgoDeck w/ Integrated No-Slip Cleats Solid
    Your Rating

    Q: What is meant by "customizable in 3" increments"?

    A: Unlike other modular tiles available in the market, our patented LockSafe connection can be cut every 3" without losing the ability to connect to adjoining tiles.

    Q: How do I cut ErgoDeck tiles?

    A: ErgoDeck is a robust product. While it can be cut with a utility knife, we suggest a band saw or similar cutting equipment for larger installations.

    Q: Do I need to use adhesives or special tools?

    A: One of the biggest benefits of the LockSafe system is a secure, dependable connection that snaps together and holds tight in-use, but zips apart for reconfiguration or replacement! No tools are necessary for the assembly or disassembly, however, a rubber mallet is sometimes used in installation to quickly "lock" the connectors. Alternatively, they can be "locked" by walking along the edges of each tile.

    Q: Can I use it over grating or catwalks?

    A: Yes! The heavy-duty compound and robust box-spring design performs well on grated surfaces.

    Q: It prevents slips, but is it comfortable?

    A: Yes! In fact, users are often surprised by just how comfortable it is underfoot. Request a sample and feel for yourself!

    Q: Are there risks associated with pivoting?

    A: Cleated ErgoDeck products are designed to prevent slips in extreme situations where gritted products simply won't hold up to the environment. In these hazardous areas, the dangers posed by slips and falls, far outweigh other risks. Once on a sure-footed surface, workers no longer feel the need to shuffle their feet to avoid a slip, decreasing the likelihood of knee or joint injury. For less critical environments we recommend ErgoDeck with GRITSHIELD.

    Q: Will the cleats break off?

    A: This was a major emphasis in the engineering and development of the product. In the end, we achieved a strength that requires hundreds of pounds of direct
